| size | 50 x 25 | 50 x 50 | 75 x 50 | 75 x 75 | 100 x 50 | 100 x 75 | 100 x 100 | 150 x 50 |
|---|---|---|---|---|---|---|---|---|
| 1 comp | AGBT21/SB | AGBT22/SB | AGBT32/SB | AGBT33/SB | AGBT42/SB | AGBT43/SB | AGBT44/SB | AGBT62/SB |
| 2 comp | AGBT21/2/SB | AGBT22/2/SB | AGBT32/2/SB | AGBT33/2/SB | AGBT42/2/SB | AGBT43/2/SB | AGBT44/2/SB | AGBT62/2/SB |
| 3 comp | AGBT21/3/SB | AGBT22/3/SB | AGBT32/3/SB | AGBT33/3/SB | AGBT42/3/SB | AGBT43/3/SB | AGBT44/3/SB | AGBT62/3/SB |
| 4 comp | AGBT21/4/SB | AGBT22/4/SB | AGBT32/4/SB | AGBT33/4/SB | AGBT42/4/SB | AGBT43/4/SB | AGBT44/4/SB | AGBT62/4/SB |
| size | 150 x 75 | 150 x 100 | 150 x 150 | 200 x 50 | 200 x 100 | 225 x 50 | 225 x 75 | 225 x 100 |
| 1 comp | AGBT63/SB | AGBT64/SB | AGBT66/SB | AGBT82/SB | AGBT84/SB | AGBT92/SB | AGBT93/SB | AGBT94/SB |
| 2 comp | AGBT63/2/SB | AGBT64/2/SB | AGBT66/2/SB | AGBT82/2/SB | AGBT84/2/SB | AGBT92/2/SB | AGBT93/2/SB | AGBT94/2/SB |
| 3 comp | AGBT63/3/SB | AGBT64/3/SB | AGBT66/3/SB | AGBT82/3/SB | AGBT84/3/SB | AGBT92/3/SB | AGBT93/3/SB | AGBT94/3/SB |
| 4 comp | AGBT63/4/SB | AGBT64/4/SB | AGBT66/4/SB | AGBT82/4/SB | AGBT84/4/SB | AGBT92/4/SB | AGBT93/4/SB | AGBT94/4/SB |
| size | 225 x 150 | 225 x 225 | 300 x 50 | 300 x 75 | 300 x 100 | 300 x 150 | 300 x 225 | 300 x 300 |
| 1 comp | AGBT96/SB | AGBT99/SB | AGBT122/SB | AGBT123/SB | AGBT124/SB | AGBT126/SB | AGBT129/SB | AGBT1212/SB |
| 2 comp | AGBT96/2/SB | AGBT99/2/SB | AGBT122/2/SB | AGBT123/2/SB | AGBT124/2/SB | AGBT126/2/SB | AGBT129/2/SB | AGBT1212/2/SB |
| 3 comp | AGBT96/3/SB | AGBT99/3/SB | AGBT122/3/SB | AGBT123/3/SB | AGBT124/3/SB | AGBT126/3/SB | AGBT129/3/SB | AGBT1212/3/SB |
| 4 comp | AGBT96/4/SB | AGBT99/4/SB | AGBT122/4/SB | AGBT123/4/SB | AGBT124/4/SB | AGBT126/4/SB | AGBT129/4/SB | AGBT1212/4/SB |
Description

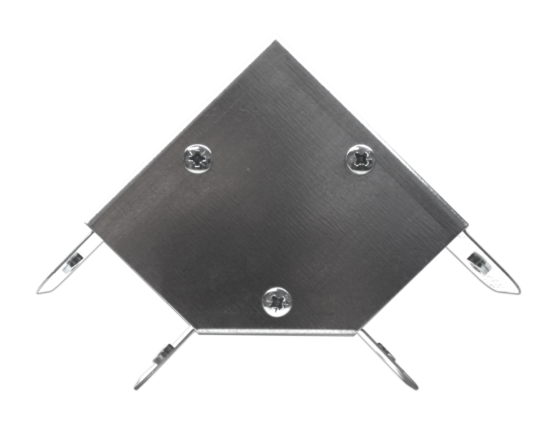

RMS offer a comprehensive range of screw bush returned edge surface trunking single or multi compartment to British Standard EN 50085 – 1:2006 + A1: 2011 unless otherwise stated
All cable trunking lengths and accessories will be supplied as screw bush with the following:
Various sizes of cable trunking body and lid will be made from 1.0mm nominal
All trunking bodies have a 15mm wide return flange
All trunking lids are supplied 3 metre long
‘U’ type connectors to be supplied on single compartment trunking
‘Fish-Plate’ type connectors are supplied on multi-compartment trunking
Screws for lids, connectors and accessories to be M5x12mm screw bush
