| size | 50 x 25 | 50 x 50 | 75 x 50 | 75 x 75 | 100 x 50 | 100 x 75 | 100 x 100 | 150 x 50 |
|---|---|---|---|---|---|---|---|---|
| 1 comp | AFBI21/SB | AFBI22/SB | AFBI32/SB | AFBI33/SB | AFBI42/SB | AFBI43/SB | AFBI44/SB | AFBI62/SB |
| 2 comp | AFBI21/2/SB | AFBI22/2/SB | AFBI32/2/SB | AFBI33/2/SB | AFBI42/2/SB | AFBI43/2/SB | AFBI44/2/SB | AFBI62/2/SB |
| 3 comp | AFBI21/3/SB | AFBI22/3/SB | AFBI32/3/SB | AFBI33/3/SB | AFBI42/3/SB | AFBI43/3/SB | AFBI44/3/SB | AFBI62/3/SB |
| 4 comp | AFBI21/4 | AFBI22/4/SB | AFBI32/4/SB | AFBI33/4/SB | AFBI42/4/SB | AFBI43/4/SB | AFBI44/4/SB | AFBI62/4/SB |
| size | 150 x 75 | 150 x 100 | 150 x 150 | 200 x 50 | 200 x 100 | 225 x 50 | 225 x 75 | 225 x 100 |
| 1 comp | AFBI63/SB | AFBI64/SB | AFBI66/SB | AFBI82/SB | AFBI84/SB | AFBI92/SB | AFBI93/SB | AFBI94/SB |
| 2 comp | AFBI63/2/SB | AFBI64/2/SB | AFBI66/2/SB | AFBI82/2/SB | AFBI84/2/SB | AFBI92/2/SB | AFBI93/2/SB | AFBI94/2/SB |
| 3 comp | AFBI63/3/SB | AFBI64/3/SB | AFBI66/3/SB | AFBI82/3/SB | AFBI84/3/SB | AFBI92/3/SB | AFBI93/3/SB | AFBI94/3/SB |
| 4 comp | AFBI63/4/SB | AFBI64/4/SB | AFBI66/4/SB | AFBI82/4/SB | AFBI84/4/SB | AFBI92/4/SB | AFBI93/4/SB | AFBI94/4/SB |
| size | 225 x 150 | 225 x 225 | 300 x 50 | 300 x 75 | 300 x 100 | 300 x 150 | 300 x 225 | 300 x 300 |
| 1 comp | AFBI96/SB | AFBI99/SB | AFBI122/SB | AFBI123/SB | AFBI124/SB | AFBI126/SB | AFBI129/SB | AFBI1212/SB |
| 2 comp | AFBI96/2/SB | AFBI99/2/SB | AFBI122/2/SB | AFBI123/2/SB | AFBI124/2/SB | AFBI126/2/SB | AFBI129/2/SB | AFBI1212/2/SB |
| 3 comp | AFBI96/3/SB | AFBI99/3/SB | AFBI122/3/SB | AFBI123/3/SB | AFBI124/3/SB | AFBI126/3/SB | AFBI129/3/SB | AFBI1212/3/SB |
| 4 comp | AFBI96/4/SB | AFBI99/4/SB | AFBI122/4/SB | AFBI123/4/SB | AFBI124/4/SB | AFBI126/4/SB | AFBI129/4/SB | AFBI1212/4/SB |
Description
RMS offer a comprehensive range of screw bush returned edge surface trunking single or multi compartment to British Standard EN 50085 – 1:2006 + A1: 2011 unless otherwise stated
All cable trunking lengths and accessories will be supplied as screw bush with the following:
Various sizes of cable trunking body and lid will be made from 1.0mm nominal
All trunking bodies have a 15mm wide return flange
All trunking lids are supplied 3 metre long

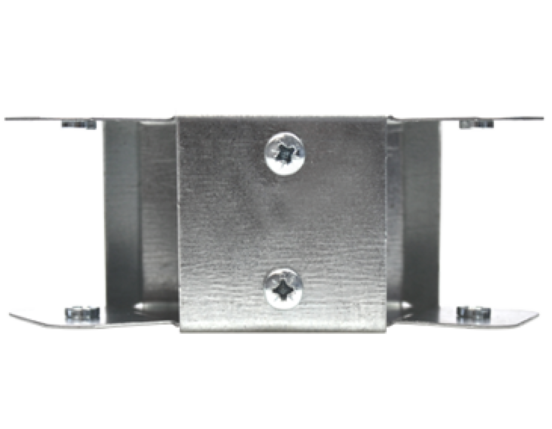

‘U’ type connectors to be supplied on single compartment trunking
‘Fish-Plate’ type connectors are supplied on multi-compartment trunking
Screws for lids, connectors and accessories to be M5x12mm screw bush
