| size | 50 x 25 | 50 x 50 | 75 x 50 | 75 x 75 | 100 x 50 | 100 x 75 | 100 x 100 | 150 x 50 |
|---|---|---|---|---|---|---|---|---|
| 1 comp | AGBI21/SB | AGBI22/SB | AGBI32/SB | AGBI33/SB | AGBI42/SB | AGBI43/SB | AGBI44/SB | AGBI62/SB |
| 2 comp | AGBI21/2/SB | AGBI22/2/SB | AGBI32/2/SB | AGBI33/2/SB | AGBI42/2/SB | AGBI43/2/SB | AGBI44/2/SB | AGBI62/2/SB |
| 3 comp | AGBI21/3/SB | AGBI22/3/SB | AGBI32/3/SB | AGBI33/3/SB | AGBI42/3/SB | AGBI43/3/SB | AGBI44/3/SB | AGBI62/3/SB |
| 4 comp | AGBI21/4/SB | AGBI22/4/SB | AGBI32/4/SB | AGBI33/4/SB | AGBI42/4/SB | AGBI43/4/SB | AGBI44/4/SB | AGBI62/4/SB |
| size | 150 x 75 | 150 x 100 | 150 x 150 | 200 x 50 | 200 x 100 | 225 x 50 | 225 x 75 | 225 x 100 |
| 1 comp | AGBI63/SB | AGBI64/SB | AGBI66/SB | AGBI82/SB | AGBI84/SB | AGBI92/SB | AGBI93/SB | AGBI94/SB |
| 2 comp | AGBI63/2/SB | AGBI64/2/SB | AGBI66/2/SB | AGBI82/2/SB | AGBI84/2/SB | AGBI92/2/SB | AGBI93/2/SB | AGBI94/2/SB |
| 3 comp | AGBI63/3/SB | AGBI64/3/SB | AGBI66/3/SB | AGBI82/3/SB | AGBI84/3/SB | AGBI92/3/SB | AGBI93/3/SB | AGBI94/3/SB |
| 4 comp | AGBI63/4/SB | AGBI64/4/SB | AGBI66/4/SB | AGBI82/4/SB | AGBI84/4/SB | AGBI92/4/SB | AGBI93/4/SB | AGBI94/4/SB |
| size | 225 x 150 | 225 x 225 | 300 x 50 | 300 x 75 | 300 x 100 | 300 x 150 | 300 x 225 | 300 x 300 |
| 1 comp | AGBI96/SB | AGBI99/SB | AGBI122/SB | AGBI123/SB | AGBI124/SB | AGBI126/SB | AGBI129/SB | AGBI1212/SB |
| 2 comp | AGBI96/2/SB | AGBI99/2/SB | AGBI122/2/SB | AGBI123/2/SB | AGBI124/2/SB | AGBI126/2/SB | AGBI129/2/SB | AGBI1212/2/SB |
| 3 comp | AGBI96/3/SB | AGBI99/3/SB | AGBI122/3/SB | AGBI123/3/SB | AGBI124/3/SB | AGBI126/3/SB | AGBI129/3/SB | AGBI1212/3/SB |
| 4 comp | AGBI96/4/SB | AGBI99/4/SB | AGBI122/4/SB | AGBI123/4/SB | AGBI124/4/SB | AGBI126/4/SB | AGBI129/4/SB | AGBI1212/4/SB |
Description
RMS offer a comprehensive range of screw bush returned edge surface trunking single or multi compartment to British Standard EN 50085 – 1:2006 + A1: 2011 unless otherwise stated
All cable trunking lengths and accessories will be supplied as screw bush with the following:
Various sizes of cable trunking body and lid will be made from 1.0mm nominal
All trunking bodies have a 15mm wide return flange
All trunking lids are supplied 3 metre long

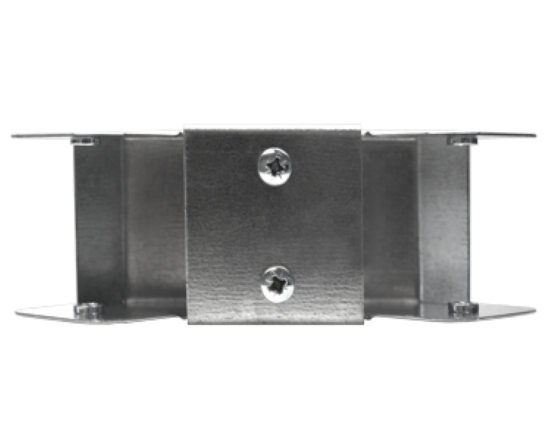

‘U’ type connectors to be supplied on single compartment trunking
‘Fish-Plate’ type connectors are supplied on multi-compartment trunking
Screws for lids, connectors and accessories to be M5x12mm screw bush
