| size | 50 x 25 | 50 x 50 | 75 x 50 | 75 x 75 | 100 x 50 | 100 x 75 | 100 x 100 | 150 x 50 |
|---|---|---|---|---|---|---|---|---|
| 1 comp | AFBO21/SB | AFBO22/SB | AFBO32/SB | AFBO33/SB | AFBO42/SB | AFBO43/SB | AFBO44/SB | AFBO62/SB |
| 2 comp | AFBO21/2/SB | AFBO22/2/SB | AFBO32/2/SB | AFBO33/2/SB | AFBO42/2/SB | AFBO43/2/SB | AFBO44/2/SB | AFBO62/2/SB |
| 3 comp | AFBO21/3/SB | AFBO22/3/SB | AFBO32/3/SB | AFBO33/3/SB | AFBO42/3/SB | AFBO43/3/SB | AFBO44/3/SB | AFBO62/3/SB |
| 4 comp | AFBO21/4/SB | AFBO22/4/SB | AFBO32/4/SB | AFBO33/4/SB | AFBO42/4/SB | AFBO43/4/SB | AFBO44/4/SB | AFBO62/4/SB |
| size | 150 x 75 | 150 x 100/SB | 150 x 150 | 200 x 50 | 200 x 100 | 225 x 50 | 225 x 75 | 225 x 100 |
| 1 comp | AFBO63/SB | AFBO64/SB | AFBO66/SB | AFBO82/SB | AFBO84/SB | AFBO92/SB | AFBO93/SB | AFBO94 |
| 2 comp | AFBO63/2/SB | AFBO64/2/SB | AFBO66/2/SB | AFBO82/2/SB | AFBO84/2/SB | AFBO92/2/SB | AFBO93/2/SB | AFBO94/2/SB |
| 3 comp | AFBO63/3/SB | AFBO64/3/SB | AFBO66/3/SB | AFBO82/3/SB | AFBO84/3/SB | AFBO92/3/SB | AFBO93/3/SB | AFBO94/3/SB |
| 4 comp | AFBO63/4/SB | AFBO64/4/SB | AFBO66/4/SB | AFBO82/4/SB | AFBO84/4/SB | AFBO92/4/SB | AFBO93/4/SB | AFBO94/4/SB |
| size | 225 x 150 | 225 x 225 | 300 x 50 | 300 x 75 | 300 x 100 | 300 x 150 | 300 x 225 | 300 x 300 |
| 1 comp | AFBO96/SB | AFBO99/SB | AFBO122/SB | AFBO123/SB | AFBO124/SB | AFBO126/SB | AFBO129/SB | AFBO1212/SB |
| 2 comp | AFBO96/2/SB | AFBO99/2/SB | AFBO122/2/SB | AFBO123/2/SB | AFBO124/2/SB | AFBO126/2/SB | AFBO129/2/SB | AFBO1212/2/SB |
| 3 comp | AFBO96/3/SB | AFBO99/3/SB | AFBO122/3/SB | AFBO123/3/SB | AFBO124/3/SB | AFBO126/3/SB | AFBO129/3/SB | AFBO1212/3/SB |
| 4 comp | AFBO96/4/SB | AFBO99/4/SB | AFBO122/4/SB | AFBO123/4/SB | AFBO124/4/SB | AFBO126/4/SB | AFBO129/4/SB | AFBO1212/4/SB |
Description
RMS offer a comprehensive range of screw bush returned edge surface trunking single or multi compartment to British Standard EN 50085 – 1:2006 + A1: 2011 unless otherwise stated
All cable trunking lengths and accessories will be supplied as screw bush with the following:
Various sizes of cable trunking body and lid will be made from 1.0mm nominal
All trunking bodies have a 15mm wide return flange
All trunking lids are supplied 3 metre long
‘U’ type connectors to be supplied on single compartment trunking

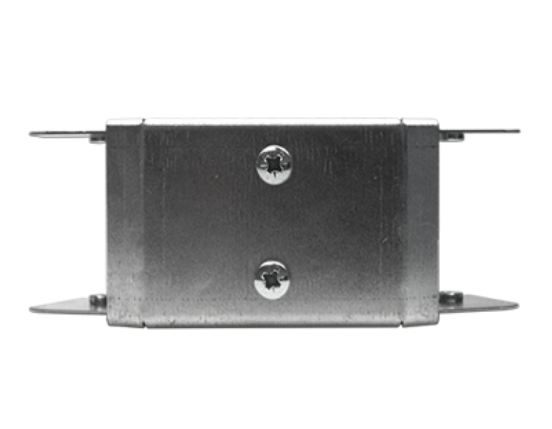

‘Fish-Plate’ type connectors are supplied on multi-compartment trunking
Screws for lids, connectors and accessories to be M5x12mm screw bush
