| size | 50 x 25 | 50 x 50 | 75 x 50 | 75 x 75 | 100 x 50 | 100 x 75 | 100 x 100 | 150 x 50 |
|---|---|---|---|---|---|---|---|---|
| 1 comp | AGBO21/SB/SB | AGBO22/SB | AGBO32/SB | AGBO33/SB | AGBO42/SB | AGBO43/SB | AGBO44/SB | AGBO62/SB |
| 2 comp | AGBO21/2/SB | AGBO22/2/SB | AGBO32/2/SB | AGBO33/2/SB | AGBO42/2/SB | AGBO43/2/SB | AGBO44/2/SB | AGBO62/2/SB |
| 3 comp | AGBO21/3/SB | AGBO22/3/SB | AGBO32/3/SB | AGBO33/3/SB | AGBO42/3/SB | AGBO43/3/SB | AGBO44/3/SB | AGBO62/3/SB |
| 4 comp | AGBO21/4/SB | AGBO22/4/SB | AGBO32/4/SB | AGBO33/4/SB | AGBO42/4/SB | AGBO43/4/SB | AGBO44/4/SB | AGBO62/4/SB |
| size | 150 x 75 | 150 x 100 | 150 x 150 | 200 x 50 | 200 x 100 | 225 x 50 | 225 x 75 | 225 x 100 |
| 1 comp | AGBO63/SB | AGBO64/SB | AGBO66/SB | AGBO82/SB | AGBO84/SB | AGBO92/SB | AGBO93/SB | AGBO94/SB |
| 2 comp | AGBO63/2/SB | AGBO64/2/SB | AGBO66/2/SB | AGBO82/2/SB | AGBO84/2/SB | AGBO92/2/SB | AGBO93/2/SB | AGBO94/2/SB |
| 3 comp | AGBO63/3/SB | AGBO64/3/SB | AGBO66/3/SB | AGBO82/3/SB | AGBO84/3/SB | AGBO92/3/SB | AGBO93/3/SB | AGBO94/3/SB |
| 4 comp | AGBO63/4/SB | AGBO64/4/SB | AGBO66/4/SB | AGBO82/4/SB | AGBO84/4/SB | AGBO92/4/SB | AGBO93/4/SB | AGBO94/4/SB |
| size | 225 x 150 | 225 x 225 | 300 x 50 | 300 x 75 | 300 x 100 | 300 x 150 | 300 x 225 | 300 x 300 |
| 1 comp | AGBO96/SB | AGBO99/SB | AGBO122/SB | AGBO123/SB | AGBO124/SB | AGBO126/SB | AGBO129/SB | AGBO1212/SB |
| 2 comp | AGBO96/2/SB | AGBO99/2/SB | AGBO122/2/SB | AGBO123/2/SB | AGBO124/2/SB | AGBO126/2/SB | AGBO129/2/SB | AGBO1212/2/SB |
| 3 comp | AGBO96/3/SB | AGBO99/3/SB | AGBO122/3/SB | AGBO123/3/SB | AGBO124/3/SB | AGBO126/3/SB | AGBO129/3/SB | AGBO1212/3/SB |
| 4 comp | AGBO96/4/SB | AGBO99/4/SB | AGBO122/4/SB | AGBO123/4/SB | AGBO124/4/SB | AGBO126/4/SB | AGBO129/4/SB | AGBO1212/4/SB |

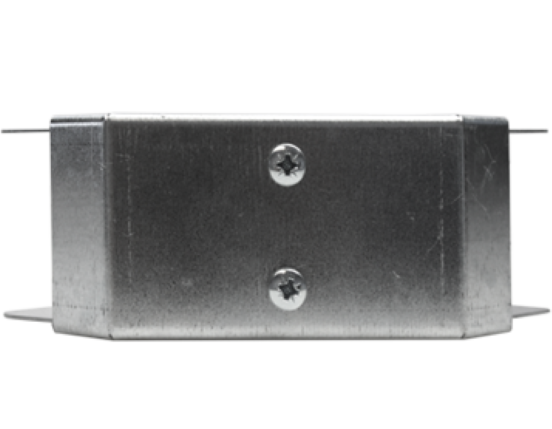

Description
RMS offer a comprehensive range of screw bush returned edge surface trunking single or multi compartment to British Standard EN 50085 – 1:2006 + A1: 2011 unless otherwise stated
All cable trunking lengths and accessories will be supplied as screw bush with the following:
Various sizes of cable trunking body and lid will be made from 1.0mm nominal
All trunking bodies have a 15mm wide return flange
All trunking lids are supplied 3 metre long
‘U’ type connectors to be supplied on single compartment trunking
‘Fish-Plate’ type connectors are supplied on multi-compartment trunking
Screws for lids, connectors and accessories to be M5x12mm screw bush
