screw bush security trunking
AGT/SB
- All sizes displayed in mm
- Trunking is supplied in 3m lengths as standard
- Please contact us for alternative sizes
| size | 50 x 25 | 50 x 50 | 75 x 50 | 75 x 75 | 100 x 50 | 100 x 75 | 100 x 100 | 150 x 50 |
|---|---|---|---|---|---|---|---|---|
| 1 comp | AGT/21 /SB | AGT/22 /SB | AGT/32 /SB | AGT/33 /SB | AGT/42 /SB | AGT/43 /SB | AGT/44 /SB | AGT/62 /SB |
| 2 comp | AGT/21/2 /SB | AGT/22/2 /SB | AGT/32/2 /SB | AGT/33/2 /SB | AGT/42/2 /SB | AGT/43/2 /SB | AGT/44/2 /SB | AGT/62/2 /SB |
| 3 comp | AGT/21/3 /SB | AGT/22/3 /SB | AGT/32/3 /SB | AGT/33/3 /SB | AGT/42/3 /SB | AGT/43/3 /SB | AGT/44/3 /SB | AGT/62/3 /SB |
| 4 comp | AGT/21/4 /SB | AGT/22/4 /SB | AGT/32/4 /SB | AGT/33/4 /SB | AGT/42/4 /SB | AGT/43/4 /SB | AGT/44/4 /SB | AGT/62/4 /SB |
| size | 150 x 75 | 150 x 100 | 150 x 150 | 200 x 50 | 200 x 100 | 225 x 50 | 225 x 75 | 225 x 100 |
| 1 comp | AGT/63 /SB | AGT/64 /SB | AGT/66 /SB | AGT/82 /SB | AGT/84 /SB | AGT/92 /SB | AGT/93 /SB | AGT/94 /SB |
| 2 comp | AGT/63/2 /SB | AGT/64/2 /SB | AGT/66/2 /SB | AGT/82/2 /SB | AGT/84/2 /SB | AGT/92/2 /SB | AGT/93/2 /SB | AGT/94/2 /SB |
| 3 comp | AGT/63/3 /SB | AGT/64/3 /SB | AGT/66/3 /SB | AGT/82/3 /SB | AGT/84/3 /SB | AGT/92/3 /SB | AGT/93/3 /SB | AGT/94/3 /SB |
| 4 comp | AGT/63/4 /SB | AGT/64/4 /SB | AGT/66/4 /SB | AGT/82/4 /SB | AGT/84/4 /SB | AGT/92/4 /SB | AGT/93/4 /SB | AGT/94/4 /SB |
| size | 225 x 150 | 225 x 225 | 300 x 50 | 300 x 75 | 300 x 100 | 300 x 150 | 300 x 225 | 300 x 300 |
| 1 comp | AGT/96 /SB | AGT/99 /SB | AGT/122 /SB | AGT/123 /SB | AGT/124 /SB | AGT/126 /SB | AGT/129 /SB | AGT/1212 /SB |
| 2 comp | AGT/96/2 /SB | AGT/99/2 /SB | AGT/122/2 /SB | AGT/123/2 /SB | AGT/124/2 /SB | AGT/126/2 /SB | AGT/129/2 /SB | AGT/1212/2 /SB |
| 3 comp | AGT/96/3 /SB | AGT/99/3 /SB | AGT/122/3 /SB | AGT/123/3 /SB | AGT/124/3 /SB | AGT/126/3 /SB | AGT/129/3 /SB | AGT/1212/3 /SB |
| 4 comp | AGT/96/4 /SB | AGT/99/4 /SB | AGT/122/4 /SB | AGT/123/4 /SB | AGT/124/4 /SB | AGT/126/4 /SB | AGT/129/4 /SB | AGT/1212/4 /SB |
Accessories
Description
RMS offer a comprehensive range of standard returned edge surface trunking single or multi compartment to British Standard EN 50085 – 1:2006 + A1: 2011 unless otherwise stated
All cable trunking lengths and accessories will be supplied as screw bush with the following:
Various sizes of cable trunking body and lid will be made from 1.0mm nominal
All trunking bodies have a 15mm wide return flange
All trunking lids are supplied 3 metre long
‘U’ type connectors to be supplied on single compartment trunking
‘Fish-Plate’ type connectors are supplied on multi-compartment trunking

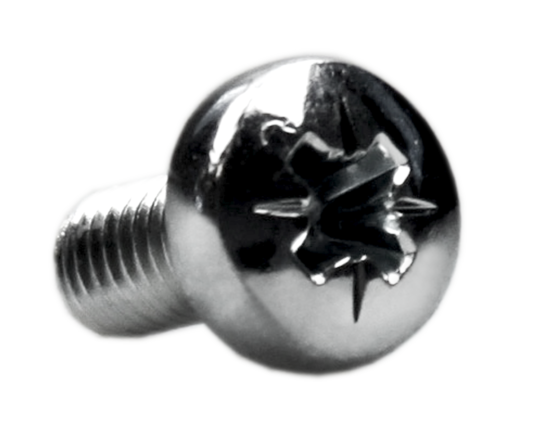

Screws for lids, connectors and accessories to be M5x12mm screw bush
